Bristles of cross hole brush are spread by the centrifugal force generated during rotation to remove burrs on sides and bottom of an inner hole. Suitable for electric grinders or CNC.
Ceramic fiber brush removes burr by extending the brush rotation. You can remove the burrs of the side and the bottom of the radius cross hole.

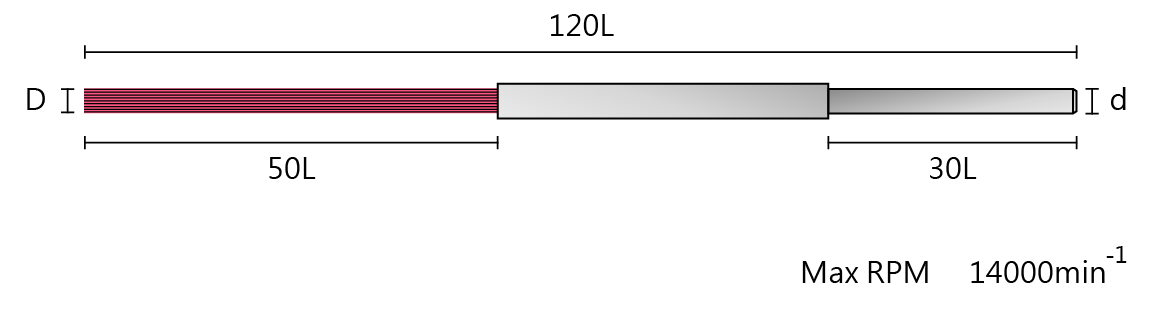

| M type | |
|
Bristle Size (Dxd) : Ø3 x Ø3
#150 |
#200 |
#400 |
#600 |
#800 |
#1000 |
#1200 |
#2000 |
#3000 |
#6000 |
| CB31G-M-03050 | CB31P-M-03050 | CB31V-M-03050 | CB31O-M-03050 | CB31B-M-03050 | CB31W-M-03050 | CB31R-M-03050 | CB31M-M-03050 | CB31Z-M-03050 | CB31A-M-03050 |
Custom-made length of Cristone Bristles is available by increasing or reducing each 10mm.
Bristle Size (Dxd) : Ø5 x Ø6
| #150 |
#200 |
#400 |
#600 |
#800 |
#1000 |
#1200 |
#2000 |
#3000 |
#6000 |
| CB31G-M-05050 | CB31P-M-05050 | CB31V-M-05050 | CB31O-M-05050 | CB31B-M-05050 | CB31W-M-05050 | CB31R-M-05050 | CB31M-M-05050 | CB31Z-M-05050 | CB31A-M-05050 |
Bristle Size (Dxd) : Ø7 x Ø6
| #150 |
#200 |
#400 |
#600 |
#800 |
#1000 |
#1200 |
#2000 |
#3000 |
#6000 |
| CB31G-M-07050 | CB31P-M-07050 | CB31V-M-07050 | CB31O-M-07050 | CB31B-M-07050 | CB31W-M-07050 | CB31R-M-07050 | CB31M-M-07050 | CB31Z-M-07050 | CB31A-M-07050 |
| Cristone Bristle point | |
| Cristone Bristle point type is designed to focus on the exact part that you want to touch. You can customize the length of the bristle and use it the same as cross hole M type. |

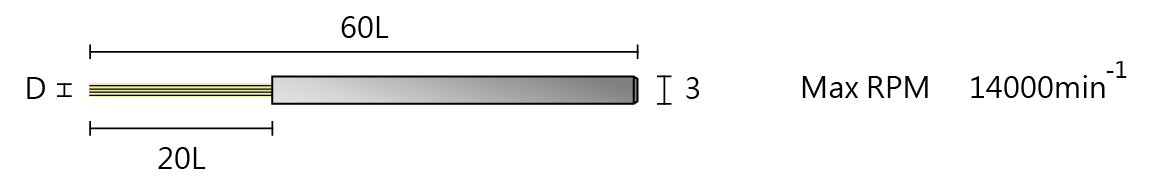

| S type |
| Length : 60mm shank : Ø3mm |
Bristle Size (D) : Ø1
| #150 |
#200 |
#400 |
#600 |
#800 |
#1000 |
#1200 |
#2000 |
#3000 |
#6000 |
| CB31G-S-010020 | CB31P-S-010020 | CB31V-S-010020 | CB31O-S-010020 | CB31B-S-010020 | CB31W-S-010020 | CB31R-S-010020 | CB31M-S-010020 | CB31Z-S-010020 | CB31A-S-010020 |
1 mm brush is with one piece of ceramic fiber bristle as circled, so the brush will not spread out while rotation. Please increase the speed from the lowest slowly and do not exceed the maximum limit of 14,000 rpm to avoid the damage.
Bristle Size (D) : Ø1.5
| #150 |
#200 |
#400 |
#600 |
#800 |
#1000 |
#1200 |
#2000 |
#3000 |
#6000 |
| CB31G-S-015020 | CB31P-S-015020 | CB31V-S-015020 | CB31O-S-015020 | CB31B-S-015020 | CB31W-S-015020 | CB31R-S-015020 | CB31M-S-015020 | CB31Z-S-015020 | CB31A-S-015020 |
Bristle Size (D) : Ø2
| #150 |
#200 |
#400 |
#600 |
#800 |
#1000 |
#1200 |
#2000 |
#3000 |
#6000 |
| CB31G-S-020020 | CB31P-S-020020 | CB31V-S-020020 | CB31O-S-020020 | CB31B-S-020020 | CB31W-S-020020 | CB31R-S-020020 | CB31M-S-020020 | CB31Z-S-020020 | CB31A-S-020020 |
Bristle Size (D) : Ø2.5
| #150 |
#200 |
#400 |
#600 |
#800 |
#1000 |
#1200 |
#2000 |
#3000 |
#6000 |
| CB31G-S-025020 | CB31P-S-025020 | CB31V-S-025020 | CB31O-S-025020 | CB31B-S-025020 | CB31W-S-025020 | CB31R-S-025020 | CB31M-S-025020 | CB31Z-S-025020 | CB31A-S-025020 |
Bristle Size (D) : Ø3
| #150 |
#200 |
#400 |
#600 |
#800 |
#1000 |
#1200 |
#2000 |
#3000 |
#6000 |
| CB31G-S-030020 | CB31P-S-030020 | CB31V-S-030020 | CB31O-S-030020 | CB31B-S-030020 | CB31W-S-030020 | CB31R-S-030020 | CB31M-S-030020 | CB31Z-S-030020 | CB31A-S-030020 |
| Attention |
- Do not rotate till you reach the cross hole.
- Adjust the rotation of the fiber brush to touch the burrs. Process the fiber brush forward and back.
- It is very dangerous when you rotate the brush outside of the hole as it might break. Please make sure to stop the rotation before pulling out the fiber brush from the hole.
| Processing examples |
