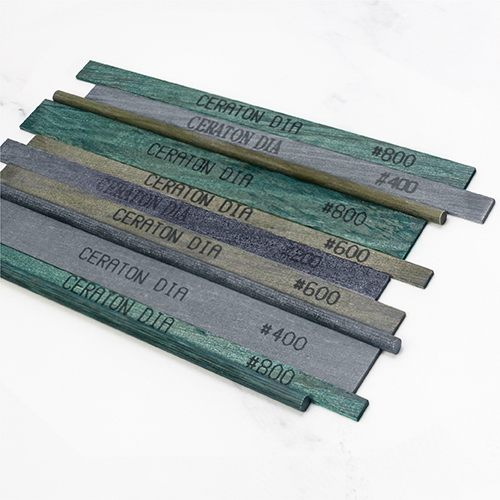

Ceramic diamond stones are made of diamond abrasives and ceramic fibers bonded together with thermosetting resins. The combination of diamond and ceramic fibers creates the outstanding cutting performance. Ceramic diamond stone is a perfect lapping tool for higher hardness material such as tungsten carbide.
Ceramic diamond stones on any sides or ends have cutting force, while ordinary ceramic fiber stonesonly have cutting force at its end.
Hard materials, those are difficult to be ground by ordinary ceramic stone, now the ceramic diamond stone can provide a much better cut.
Ceramic diamond stone is suitable for lapping all kinds of harden steels, EDM surface, tungsten carbides, ceramics and glass efficiently.

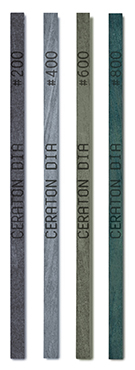

Size : 1 x 4 x 100mm
#200 |
#400 |
#600 |
#800 |
| CDS1004-200 | CDS1004-400 | CDS1004-600 | CDS1004-800 |

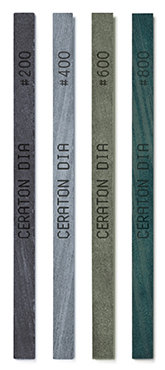

Size : 1 x 6 x 100mm
| #200 |
#400 |
#600 |
#800 |
| CDS1006-200 | CDS1006-400 | CDS1006-600 | CDS1006-800 |

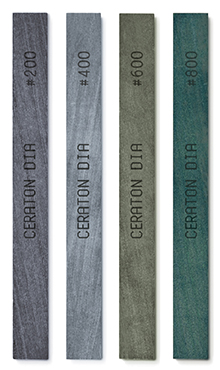

Size : 1 x 10 x 100mm
| #200 |
#400 |
#600 |
#800 |
| CDS1010-200 | CDS1010-400 | CDS1010-600 | CDS1010-800 |
Size : Ø3 x 100mm
| #200 |
#400 |
#600 |
#800 |
| CDS30-200 | CDS30-400 | CDS30-600 | CDS30-800 |
