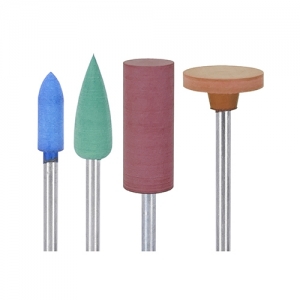

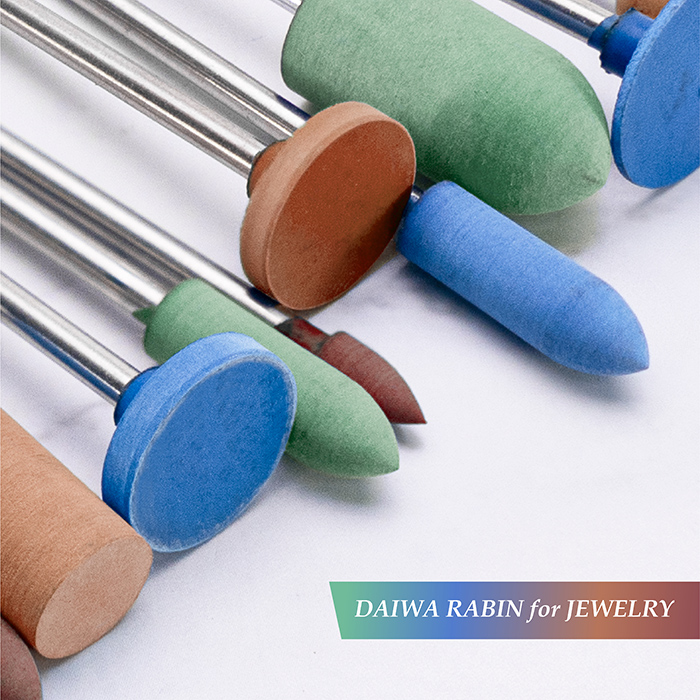

Daiwa Rabin Polishing of jewelry
Daiwa Rabin Polishing of jewelry
Designed for Precious Metals
detail

This specialized precious metal rubber formula offers dual hardness options and superior adaptability to fine, curved surfaces with enhanced stability.


Special rubber formulation ensures high durability and minimizes vibration during machining.



Available in 9 styles, suitable for various metal materials and precision components.



Gold

Platinum

 Silver

Pearl

Semi-precious Stones

Stainless Steel


Applicable Materials

Medium Finishing R#400 (Hard)

Fast fine scratch removal for hard metals.

Rotation speed / Material Brass Copper Platinum Gold Silver Titanium
High speed
rotation
Low speed
rotation
Rotation speed / Material Aluminum Stainless
Steel		 Iron Resin Glass Tile
Low speed
rotation
Low speed
rotation

Medium Finishing R#400-S2 (Soft)

For curved surfaces. Removes scratches effectively.

Rotation speed / Material Brass Copper Platinum Gold Silver Titanium
High speed
rotation
Low speed
rotation
Rotation speed / Material Aluminum Stainless
Steel		 Iron Resin Glass Tile
Low speed
rotation
Low speed
rotation

Mirror Finishing R#3000 (Hard)

Fast mirror polishing for hard metals.

Rotation speed / Material Brass Copper Platinum Gold Silver Titanium
High speed
rotation
Low speed
rotation
Rotation speed / Material Aluminum Stainless
Steel		 Iron Resin Glass Tile
Low speed
rotation
Low speed
rotation

Mirror Finishing R#3000-S (Soft)

Mirror-finishing curves without over-polishing.

Rotation speed / Material Brass Copper Platinum Gold Silver Titanium
High speed
rotation
Low speed
rotation
Rotation speed / Material Aluminum Stainless
Steel		 Iron Resin Glass Tile
Low speed
rotation
Low speed
rotation

Medium Finishing R#400

Bullet SS Shape
Size (mm)
3.5 x 6.5 x 2.35
Max RPM
20,000
Order No.
ABR-R400-3565235O-WA400

Bullet S Shape
Size (mm)
4 x 12 x 2.35
Max RPM
20,000
Order No.
ABR-R400-0412235O-WA400

Bullet M Shape
Size (mm)
5 x 16 x 2.35
Max RPM
20,000
Order No.
ABR-R400-0516235O-WA400

Bullet L Shape
Size (mm)
10 x 20 x 2.35
Max RPM
10,000
Order No.
ABR-R400-1020235O-WA400

Teardrop Shape
Size (mm)
6 x 16 x 2.35
Max RPM
20,000
Order No.
ABR-R400-0616235N-WA400

Cylinder Shape
Size (mm)
8 x 20 x 2.35
Max RPM
10,000
Order No.
ABR-R400-0820235A-WA400

Washer Shape
Size (mm)
13 x 2 x 2.35
Max RPM
20,000
Order No.
ABR-R400-1302235SB-WA400

Disc Shape
Size (mm)
12 x 2 x 2.35
Max RPM
18,000
Order No.
ABR-R400-1202235B-WA400

Flat Shape
Size (mm)
25 x 3.5 x 1.8
Max RPM
15,000
Order No.
ABR-R400-25035E-WA400

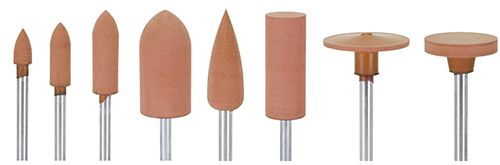

Medium Finishing R#400-S2

Bullet SS Shape
Size (mm)
3.5 x 6.5 x 2.35
Max RPM
20,000
Order No.
ABR-R400S2-3565235O-WA400

Bullet S Shape
Size (mm)
4 x 12 x 2.35
Max RPM
20,000
Order No.
ABR-R400S2-0412235O-WA400

Bullet M Shape
Size (mm)
5 x 16 x 2.35
Max RPM
20,000
Order No.
ABR-R400S2-0516235O-WA400

Bullet L Shape
Size (mm)
10 x 20 x 2.35
Max RPM
10,000
Order No.
ABR-R400S2-1020235O-WA400

Teardrop Shape
Size (mm)
6 x 16 x 2.35
Max RPM
20,000
Order No.
ABR-R400S2-0616235N-WA400

Cylinder Shape
Size (mm)
8 x 20 x 2.35
Max RPM
10,000
Order No.
ABR-R400S2-0820235A-WA400

Washer Shape
Size (mm)
13 x 2 x 2.35
Max RPM
20,000
Order No.
ABR-R400S2-1302235SB-WA400

Disc Shape
Size (mm)
12 x 2 x 2.35
Max RPM
18,000
Order No.
ABR-R400S2-1202235B-WA400

Flat Shape
Size (mm)
25 x 3.5 x 1.8
Max RPM
15,000
Order No.
ABR-R400S2-25035E-WA400


Mirror Finishing R#3000

Bullet SS Shape
Size (mm)
3.5 x 6.5 x 2.35
Max RPM
20,000
Order No.
ABR-R3000-3565235O-WA3000

Bullet S Shape
Size (mm)
4 x 12 x 2.35
Max RPM
20,000
Order No.
ABR-R3000-0412235O-WA3000

Bullet M Shape
Size (mm)
5 x 16 x 2.35
Max RPM
20,000
Order No.
ABR-R3000-0516235O-WA3000

Bullet L Shape
Size (mm)
10 x 20 x 2.35
Max RPM
10,000
Order No.
ABR-R3000-1020235O-WA3000

Teardrop Shape
Size (mm)
6 x 16 x 2.35
Max RPM
20,000
Order No.
ABR-R3000-0616235N-WA3000

Cylinder Shape
Size (mm)
8 x 20 x 2.35
Max RPM
10,000
Order No.
ABR-R3000-0820235A-WA3000

Washer Shape
Size (mm)
13 x 2 x 2.35
Max RPM
20,000
Order No.
ABR-R3000-1302235SB-WA3000

Disc Shape
Size (mm)
12 x 2 x 2.35
Max RPM
18,000
Order No.
ABR-R3000-1202235B-WA3000

Flat Shape
Size (mm)
25 x 3.5 x 1.8
Max RPM
15,000
Order No.
ABR-R3000-25035E-WA3000

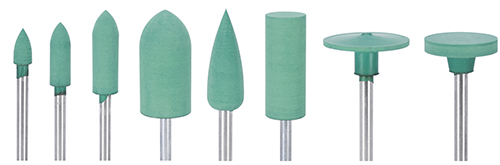

Mirror Finishing R#3000-S

Bullet SS Shape
Size (mm)
3.5 x 6.5 x 2.35
Max RPM
20,000
Order No.
ABR-R3000S-3565235O-WA3000

Bullet S Shape
Size (mm)
4 x 12 x 2.35
Max RPM
20,000
Order No.
ABR-R3000S-0412235O-WA3000

Bullet M Shape
Size (mm)
5 x 16 x 2.35
Max RPM
20,000
Order No.
ABR-R3000S-0516235O-WA3000

Bullet L Shape
Size (mm)
10 x 20 x 2.35
Max RPM
10,000
Order No.
ABR-R3000S-1020235O-WA3000

Teardrop Shape
Size (mm)
6 x 16 x 2.35
Max RPM
20,000
Order No.
ABR-R3000S-0616235N-WA3000

Cylinder Shape
Size (mm)
8 x 20 x 2.35
Max RPM
10,000
Order No.
ABR-R3000S-0820235A-WA3000

Washer Shape
Size (mm)
13 x 2 x 2.35
Max RPM
20,000
Order No.
ABR-R3000S-1302235SB-WA3000

Disc Shape
Size (mm)
12 x 2 x 2.35
Max RPM
18,000
Order No.
ABR-R3000S-1202235B-WA3000

Flat Shape
Size (mm)
25 x 3.5 x 1.8
Max RPM
15,000
Order No.
ABR-R3000S-25035E-WA3000


Compatibility tools
Electric Rotary
