Ultrasonic Polisher
UL-36W+
Adjustable Tuning-Function Ultrasonic Polisher
detail
36W have light and handy size with an attractive price, the Single Function Ultrasonic Polisher can work closer to the needs of users.



UL-36W+

Adjustable Tuning-Function Ultrasonic Polisher




Power Input

 AC110V ~ AC230V

OSC Frequency

 20KHZ~30KHZ (±3KHZ)

Power Supply Weight

1.8 kgs (±0.2kgs)

Power Output

 40W max

Output Power Range

5W~35W

Vibration

20,000~30,000 cycles / sec

Amplitude

3~35μm


Chucking System
By setting up the hand piece on the Stand Holder you can replace the collet easily with the supplied wrench.

Size
UL-36W+ (Control Box)


UL-40W HP (Hand Piece)

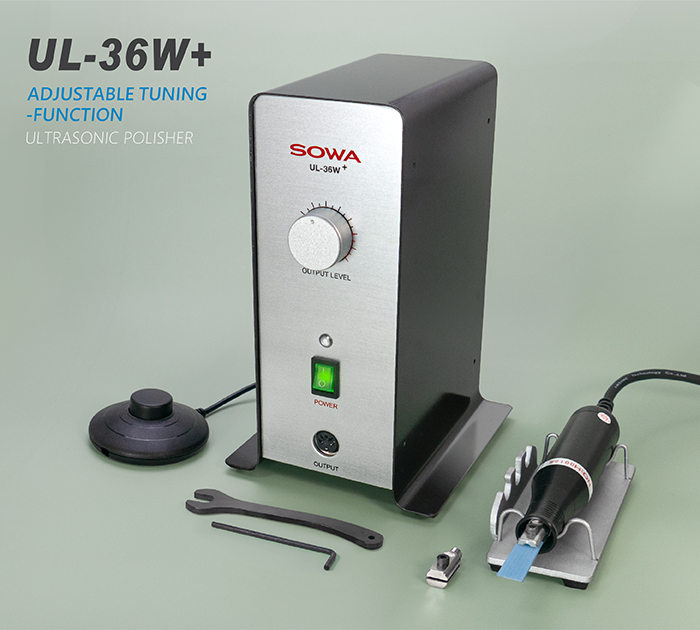

COMPONENTS
Handpiece Stand

Collet
Pedal

Hex key
Wrench
