Electric Rotary
TR-300
detail

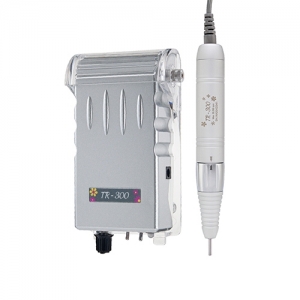

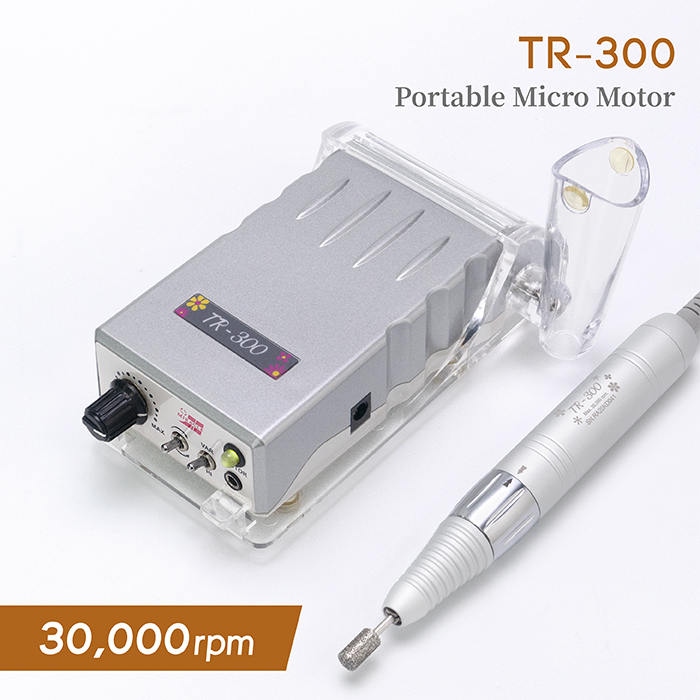

TR-300
Portable Micro Motor

● High torque

● Quiet operation

● No vibration

● Rotation Selector Switch (Forward / Reverse)


Speed

30,000rpm

Weight

440g

Collet

Ø2.34mm
Collet Ø2.34 / Ø3mm (option)
●  Battery charging time : approx. 4 hours
●  Battery use time : approx. 10 hours (with max. RPM and no-load)



High concentricity with excellent runout control


Size

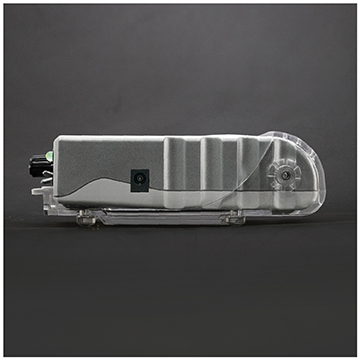

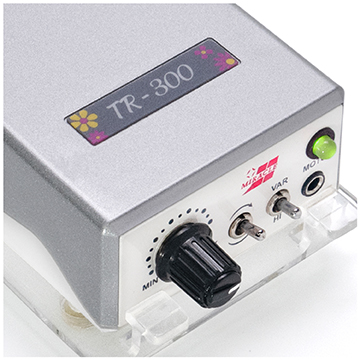

TR-300 (Control Box)

TR-300 (Hand Piece)

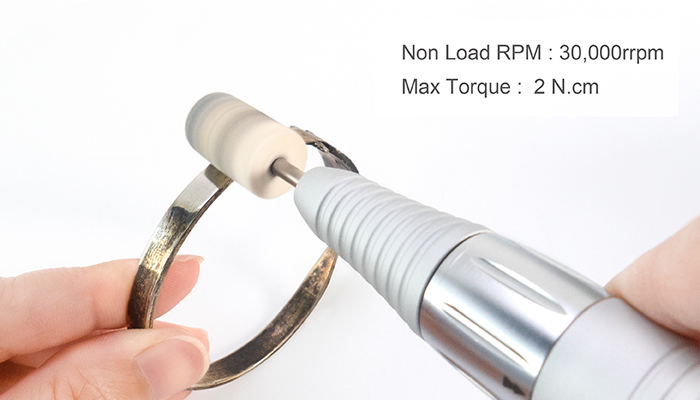

●  Max : 30,000 rpm

●  Max torque : 2 N·cm

●  Weight : 170g


隨 附 配 件

Handpiece Holder
Power cord
& Adaptor
